Roanwell Headsets
The Raven
• Active Noise Reduction (ANR): Provides an NRR rating of 25 dB(A).
• Situational Awareness: Talk-Through functionality allows the user to hear external noises without removing the headset.
• Impulse Noise Protection: Talkthrough circuitry is limited to 110 dB to protect against painful impulse noises.
• Ergonomic Switchbox: Lightweight, multi-position switchbox with a rotatable clothing clip for ease of use.
• Respiratory Microphone Connection: Sealed connection on the switchbox.
• Toggle Switch: Three positions—Talk Through, Off, and ANR.
• Battery Life: 60 hours of Talk Through functionality on a single AA battery.
• Environmental Protection: IP67 water-sealed variant available.
• Electromagnetic Shielding: Meets MIL-STD-461, RS103 requirements.
• Environmental Testing: Qualified to MIL-STD-810 for temperature, impact, humidity, fungal resistance, salt fog, and other conditions.
• Intercom Compatibility: Available for various vehicle intercom systems, including VIC3.
Categories:
Headsets
Tags:
Aerospace, Military, Popular
MORE ABOUT THIS PRODUCT

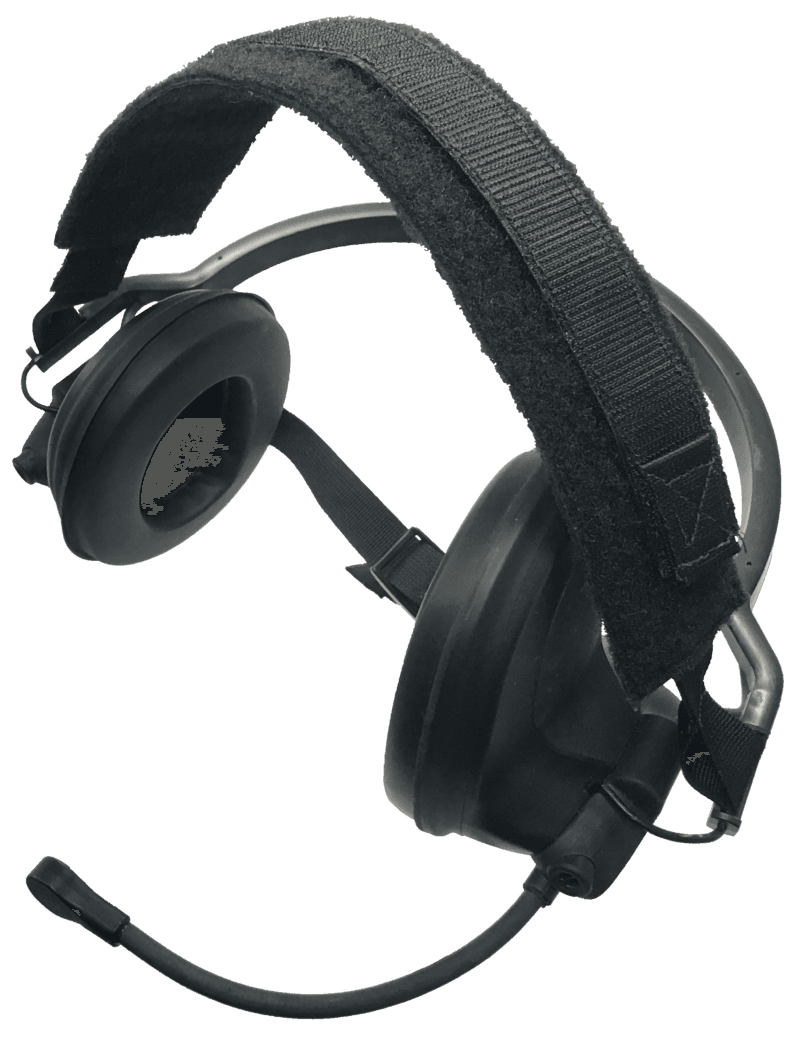

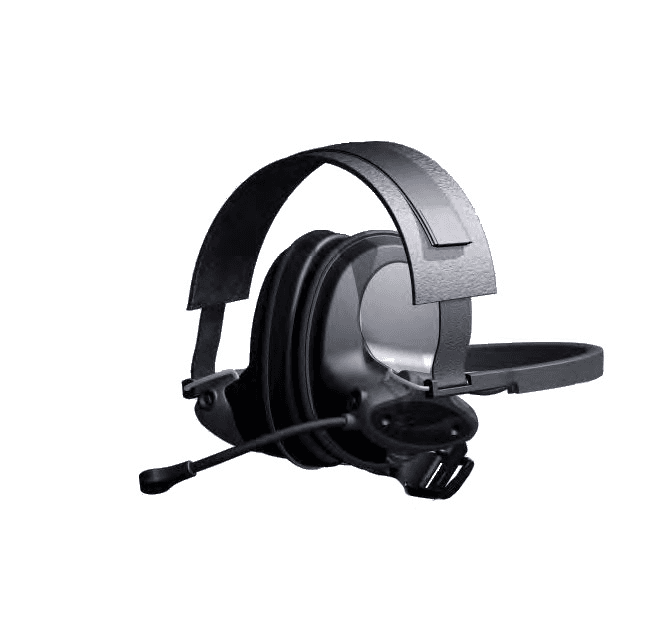

The Raven series of headsets are designed to provide reliable communication and hearing protection in the most rugged and demanding conditions. Its Active Noise Reduction eliminates unwanted background noise, while passive attenuation protects the user’s hearing and ensures clear communication.
The Talk-Through capabilities allow users to maintain situational awareness and hear external sounds without removing the headset. The Talk-Through functionality also protects hearing by limiting the sound level to 110 dB.

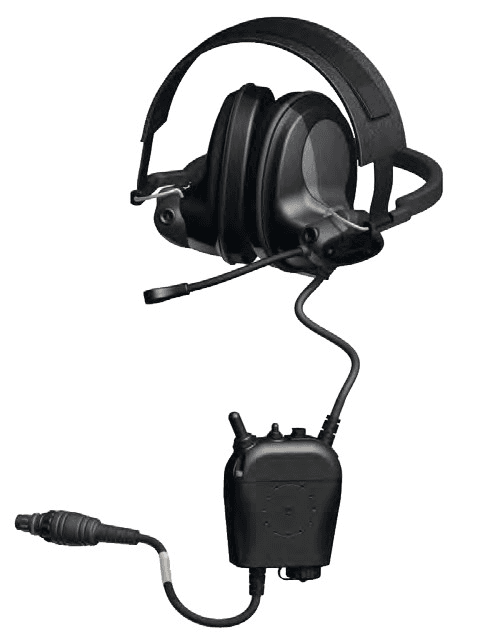

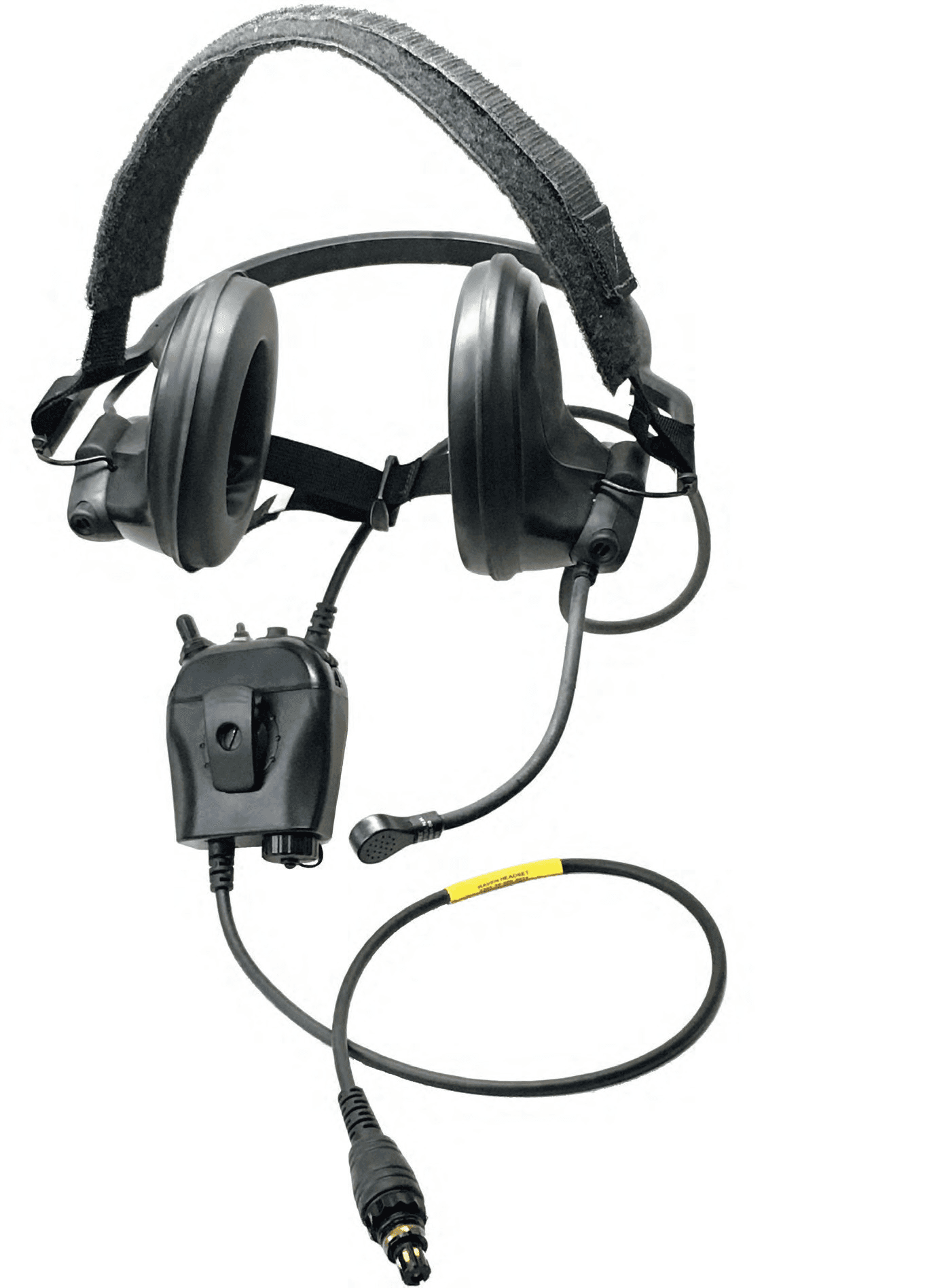

Designed to fit under Mitch/ACH – Advanced Combat Helmets, the Raven headset includes a lightweight, ergonomic, chest-mounted switchbox. This switchbox enables ANR and Talk-Through functions while also controlling communication features.
All Roanwell products can be customized to meet customer requirements.
Please call 718-401-0288 or use the form below to request a customized product quote.
Categories:
Headsets
Tags:
Aerospace, Military, Popular
ATTENUATION TABLE
Passive Attenuation (dB):
• 125 Hz: 18 dB
• 250 Hz: 16 dB
• 500 Hz: 14 dB
• 1000 Hz: 20 dB
• 2000 Hz: 41 dB
• 4000 Hz: 38 dB
• 8000 Hz: 38 dB
• NRR: 25 dB
Active Noise Reduction (ANR, dB):
• 125 Hz: 26 dB
• 250 Hz: 21 dB
• 500 Hz: 17 dB
• 1000 Hz: 21 dB
• 2000 Hz: 38 dB
• 4000 Hz: 33 dB
• 8000 Hz: 35 dB
• NRR: 23 dB
TECHNICAL SPECIFICATIONS
• NSN Compliance: 5965-99-666-5770
• Operational Temperatures: -40°F to 124°F (-40°C to 51°C)
• Storage Temperatures: -70°F to 160°F (-57°C to 71°C)
• Unit Weight: Total 590 g, switchbox 190 g
• Microphone Type: 150 Ω Noise-Cancelling Dynamic, <5% distortion
• Earphone Type: 300 Ω Dynamic, <5% distortion
• Connector: Overmolded AP-107
• Mil-STD-810 Compliance:
• Fungal Resistance: Method 508.6
• Humidity: Method 507.5, Procedure II Aggravated
• Salt Fog: Method 509.5
• Temperature – Operational: Method 501.5, Procedures I and II
• Temperature – Storage: Method 502.5, Procedures I and II
• Mil-STD-461 Compliance: Method 5.20
• Ingress Protection: IP67
• Impact/Drop Test: 2 m onto concrete 10 times with no damage
