Roanwell Headsets

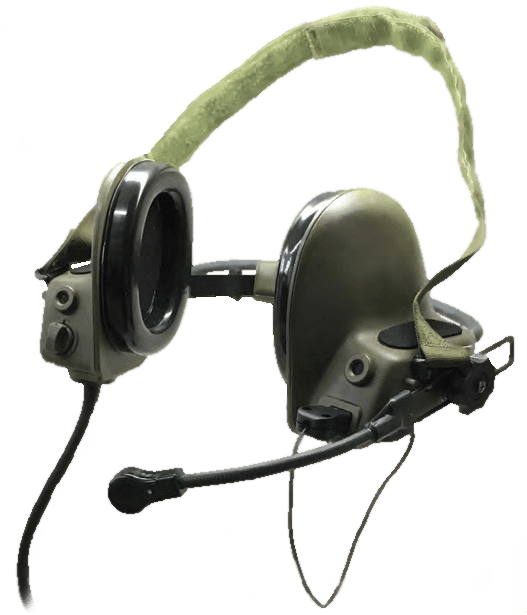

The Horus Falcon
• Hearing Protection: Combines active noise-cancelling and passive attenuation technology for superior hearing protection.
• Communication Intelligibility: Greater than 95% accuracy—be heard the first time!
• Talk-Through and Situational Awareness: Features allow communication with nearby parties without removing the headset while maintaining full situational awareness.
• Impulse Noise Protection: Quick-reacting threshold circuitry shields the user from harmful impulse noise.
• Rugged Durability: Designed to withstand repeated drops and impacts.
• Helmet Compatibility: Fits under PASGT and similar style helmets and communication systems.
Categories:
Headsets
Tags:
Aerospace, Commercial, Military
MORE ABOUT THIS PRODUCT
The Horus Falcon RW108 series of headsets provides superb communication performance even in the most demanding conditions.
• Active noise-cancelling technology eliminates unwanted background noise.
• Superior passive attenuation protects hearing and delivers crystal-clear sound in high-noise environments.
• Talk-Through circuitry allows users to maintain situational awareness with uninterrupted communication.
All Roanwell products can be customized to meet customer requirements.
Please call 718-401-0288 or use the form below to request a customized product quote.
Categories:
Headsets
Tags:
Aerospace, Commercial, Military
ATTENUATION TABLE
Passive Attenuation (dB):
• 125 Hz: 18 dB
• 250 Hz: 16 dB
• 500 Hz: 14 dB
• 1000 Hz: 20 dB
• 2000 Hz: 41 dB
• 4000 Hz: 38 dB
• 8000 Hz: 38 dB
• NRR: 25 dB
Active Noise Reduction (ANR, dB):
• 125 Hz: 25 dB
• 250 Hz: 23 dB
• 500 Hz: 15 dB
• 1000 Hz: 20 dB
• 2000 Hz: 45 dB
• 4000 Hz: 35 dB
• 8000 Hz: 35 dB
• NRR: 25 dB
TECHNICAL SPECIFICATIONS
• NSN Compliance: 5965-99-507-2471, 5965-99-725-4414
• Microphone Impedance: 150 Ω (Standard or per customer specification)
• Microphone Sensitivity: -32dBm @ 103dBSPL
• Microphone THD: <5% (300 to 4500 Hz)
• Noise Cancellation: Minimum 15 dB
• Earphone Impedance: 300 Ω (Standard or per customer specification)
• Earphone Sensitivity: 100 dBSPL
• Earphone THD: <10% (300 to 4500 Hz)
• Intercom Connectivity: Compatible with AN/VIC-1, AN/VIC-3, & MESHNET family.
